The back room

Drawings, renderings & specifications

For the people who want dimensions, door openings, evaporator callouts and a model number before they talk to anybody. Nothing gated, no email required.

3 sheets

Dimensioned approval drawing for a flower walk-in cooler showing plan view and door specification

Approval Drawings

Fully dimensioned plan and elevation drawings, with evaporator and door callouts. This is the sheet you approve before anything is manufactured.

Open the drawings

13 views

Rendering of a stocked walk-in cooler with the door open

Product Renderings

Walk-in coolers, plug door retrofits and sliding doors from our own drawing office, in multiple views.

See the renderings

301 models

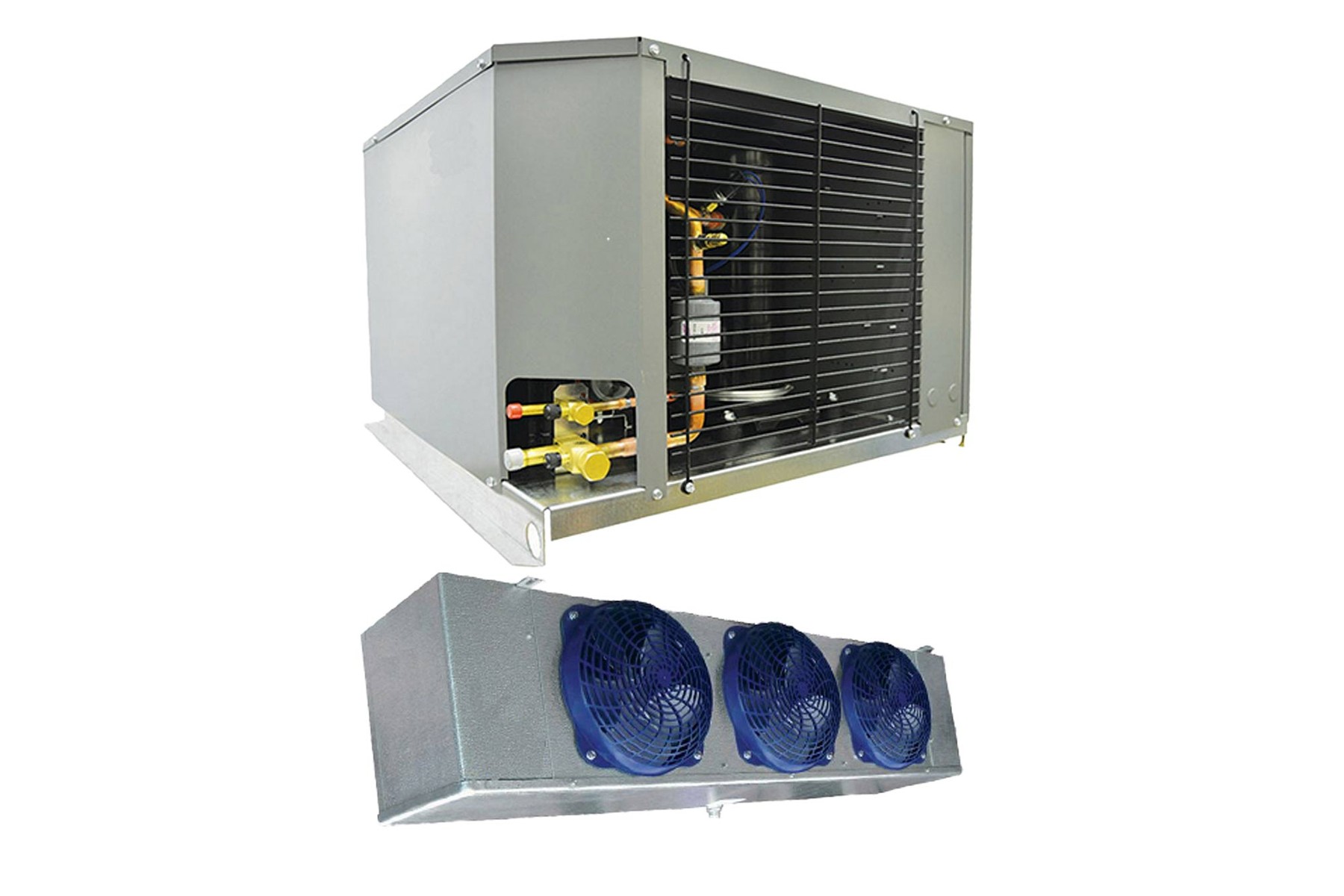

Close-up of an industrial refrigeration condensing unit

Refrigeration Systems

All 301 condensing units. ½ HP to 6 HP, R-448A and R-454A, indoor and outdoor, cooler and freezer — each with the 263 matched evaporators, BTU ratings and cabinet dimensions.

Open the specifications

These drawings are our property. All website, approval and rendering drawings are the property of Frigid Coolers LLC and are not to be copied, reproduced or disclosed without written consent.
